32A Three Phase Type 2 Mobile Charger-New Version
32A Three Phase Type 2 Mobile Charger-New Version
General features :

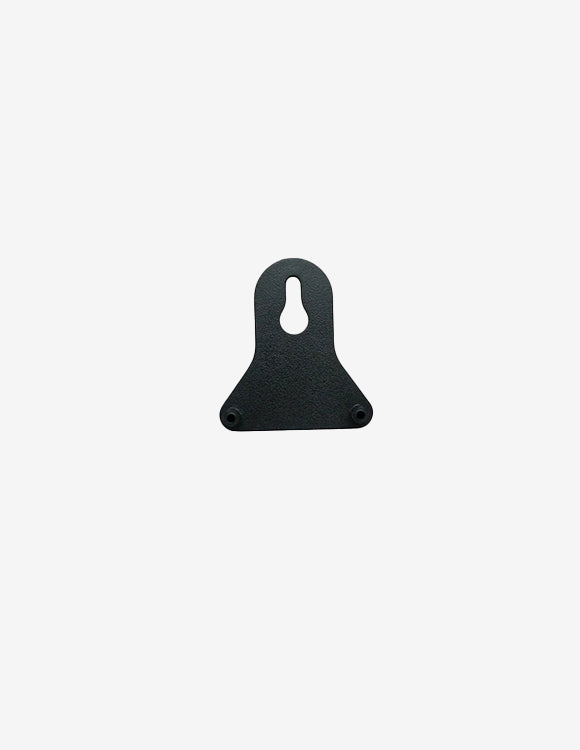

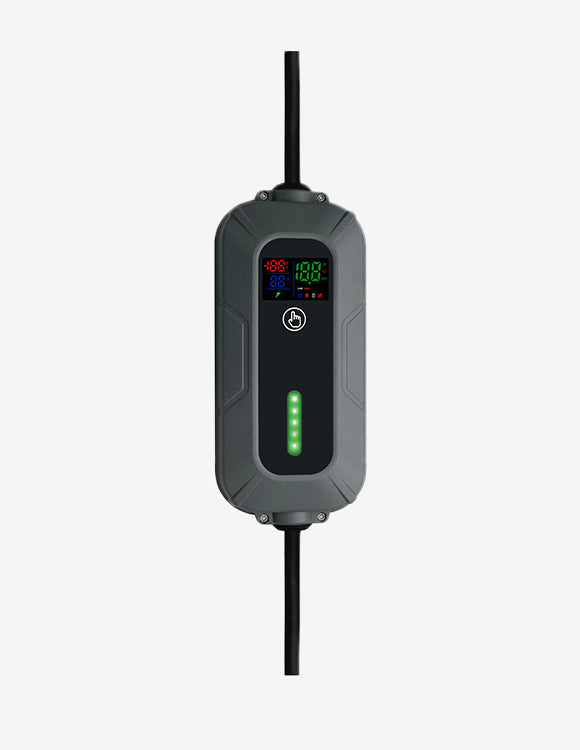

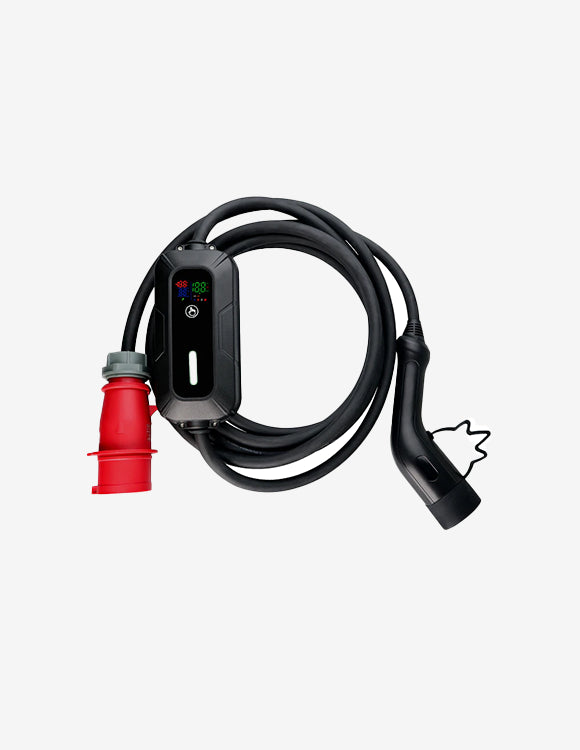

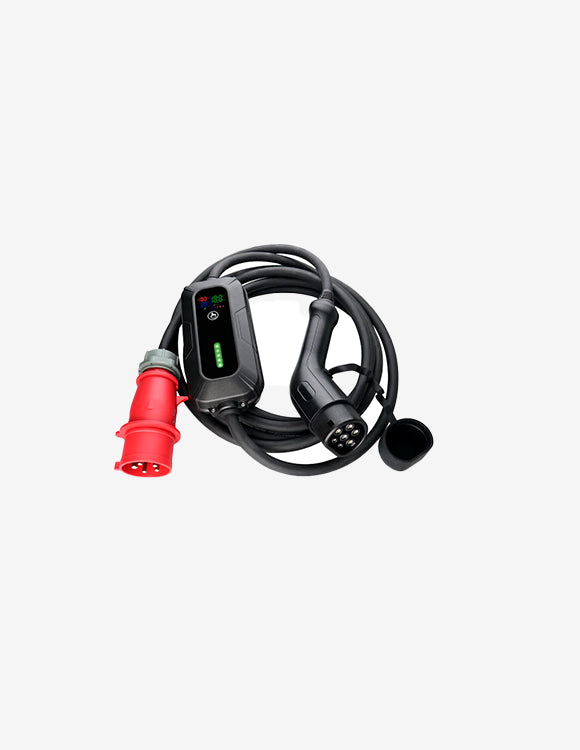

This mobile charger is used for charging electric vehicles with type 2(IEC 62196) charging port. The maximum power is 22kW. It can be equipped with Australian plug and Red CEE plug. With a mounting hole, It is easily hung on the wall. Except for LED indicators showing charging status, a 1.8-inch LED screen shows real-time charging data, such as current, voltage and power. The charging current is adjustable and the start of charging can be delayed according to the current consumption or according to the low/high tariff. The charging duration can be set. Its protection degree IP 55 allows usage in outdoor environments. And it is compatible for 99% of cars.
Product Parameter :
Model | ARR-P2N2-32T |
Power plug | Australian plug and Red CEE plug |
Max power | 22kW |
Function | Adjustable current/Delay charging/Mobile or wall mounted |
Protection degree | IP 55 |
Warranty | 1 year |
CE and TUV | Listed |
Lead time | 7 days for sample order and 15 days for massive production |
OEM/ODM | Acceptable |
Specification
Specification
Input/Output Voltage - 415V
Input Frequency - 50Hz/60Hz
Output power - 22kW(max)
Output current - 32A(max)
Circuit breaker RCD - Type A+DC 6mA
Protection degree - IP 55
Working temperature - -30℃~+50℃
Multiple protection - leakage protection, over/under-voltage protection, overload protection, lightning protection, ground protection, over-temperature protection
Standards - EN 61851-1:2011, EN 61851-21-1:2017, EN 61851-22:2002, EN 62752:2016 + A1:2020
